機組介紹
1、全銅電機，功率強勁，性能穩定
2、采用具有減震功能的加強型框架式機架
3、耐用的四輪拖動式底座結構，移動方便。
4、油壓警告燈和機油報警器時刻保護動力系統
5、大容量油箱確保長時間的連續工作
6、綠色環保，噪音低，節省燃油，維修保養耗時少
優昌斯小型開架柴油發電機組參數
發電機 Generator | 型號Model | YKS-3500E | YKS-6500E | YKS-7500E | YKS-8500E | YKS-12000E | YKS-15000E | ||||||
頻率 Frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
備用輸出 Max. output power(KW) | 3 | 3.3 | 5 | 5.5 | 5.5 | 6 | 7 | 7.5 | 9 | 9.5 | 10 | 11 | |
額定輸出 Rated output power(KW) | 2.8 | 3 | 4.5 | 5 | 5 | 5.5 | 6.5 | 7 | 8 | 9 | 9 | 10 | |
轉速 Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
額定電壓 Rated AC voltage(V) | 120,220,230,120/240,220/380 | ||||||||||||
功率因素 Power factor | 1 | ||||||||||||
直流輸出 DC output(V) | 12V/8.3A | ||||||||||||
相數 Phase NO. | 單相或者3相 Single or 3 phase | ||||||||||||
電機形式 Alternator type | 自勵磁、兩端、100%全銅線電機 Self-excited,2-pole,100% Copper wire winding alternator | ||||||||||||
啟動方式 Starting system | 電啟動和手啟動 Electric starting and Recoil start | ||||||||||||
7m處噪音 Noise level(db) in 7m | 80-85 | 99 | |||||||||||
油箱容量 Fuel tank capacity(L) | 12.5 | 30 | |||||||||||
發動機 Engine | 發動機型號 Engine Model | 178FE | 186FAE | 188FAE | 192FE | R2V86 | R2V88 | ||||||
動力形式 Engine type | 單缸、直立、4沖程、風冷、柴油 Single cylinder,vertical,4 strokes, air-cooled diesel engine | 雙缸、直立、4沖程、風冷、柴油 Tow-cylinder,vertical,4 strokes,air-cooled diesel engine | |||||||||||
缸徑*行程 Bore*stroke(mm) | 78*62 | 86*72 | 86*72 | 92*75 | 86*72 | 86*72 | |||||||
燃料Fuel type | |||||||||||||
潤滑油容量 Lubrication oil volumn(L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | |||||||
燃油消耗率 (g/kw?h) Fuel Consumption rate | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||||
燃燒系統 Combustion system | 直噴 Direct injection | ||||||||||||
潤滑油類型 Lube oil type | SAE10W-30 (CD級以)(above CD grade) | ||||||||||||
標準配置 Standard accessory | 電壓表 voltmeter | 已配備 yes | |||||||||||
交流保護器 AC circuit breaker | 已配備 yes | ||||||||||||
油壓警告燈 Oil pressure warning light | 已配備 yes | ||||||||||||
機油報警器 Oil alert | 已配備 yes | ||||||||||||
交流插頭 AC output socket | 2 | ||||||||||||
選用配置 Accessory for optional | 直流保護器 DC circuit breaker | 可選optional | |||||||||||
計時器 Hour timer | 可選optional | ||||||||||||
輪子和把手 Wheel and handle | 可選optional | ||||||||||||
三相電壓 Three phase voltage | 可選optional | ||||||||||||
電流表 Current meter | 可選optional | ||||||||||||
自動轉換開關 ATS | 可選optional | ||||||||||||
遙控功能 Remote control | 可選optional | ||||||||||||
焊接功能 Welding function | 不可選 No | 可選optional | |||||||||||
外形尺寸 Product size(mm) | 660*475*570 | 755*490*670 | 755*490*670 | 760*530*685 | 850*630*680 | 850*630*680 | |||||||
裝箱量 Loading qty(set):1*20GP | 144 | 99 | 99 | 99 | 70 | 70 | |||||||
凈重Net weight(kg) | 69 | 89 | 89 | 108 | 189 | 189 | |||||||

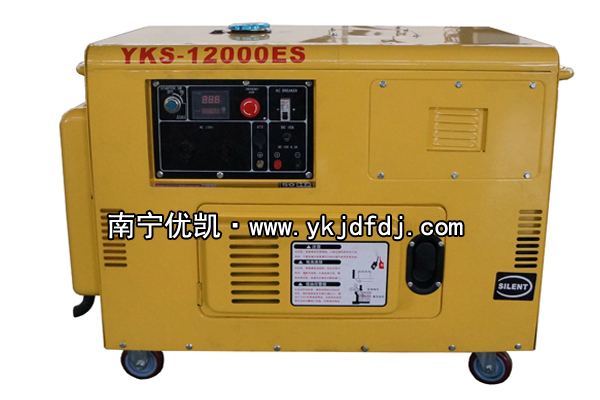

優昌斯小型靜音柴油發電機組參數
發電機 Generator | 型號Model | YKS-3500ES | YKS-6500ES | YKS-7500ES | YKS-8500ES | YKS-12000ES | YKS-15000ES | ||||||
頻率 Frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
備用輸出 Max. output power(KW) | 3 | 3.3 | 5 | 5.5 | 5.5 | 6 | 7 | 7.5 | 9 | 9.5 | 10 | 11 | |
額定輸出 Rated output power(KW) | 2.8 | 3 | 4.5 | 5 | 5 | 5.5 | 6.5 | 7 | 8 | 9 | 9 | 10 | |
轉速 Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
額定電壓 Rated AC voltage(V) | 120,220,230,120/240,220/380 | ||||||||||||
功率因素 Power factor | 1 | ||||||||||||
直流輸出 DC output(V) | 12V/8.3A | ||||||||||||
相數 Phase NO. | 單相或者3相 Single or 3 phase | ||||||||||||
電機形式 Alternator type | 自勵磁、兩端、100%全銅線電機 Self-excited,2-pole,100% Copper wire winding alternator | ||||||||||||
啟動方式 Starting system | 電啟動 Electric starting | ||||||||||||
7m處噪音 Noise level(db) in 7m | 68-72 | 75-80 | |||||||||||
油箱容量 Fuel tank capacity(L) | 16 | 30 | |||||||||||
連續工作小時 Continuous working hour (hr) | 13 | 11.8 | 8.5 | 7.8 | 8.5 | 7.8 | 8.5 | 7.8 | 9.4 | 8.4 | 9.4 | 8.4 | |
發動機 Engine | 發動機型號 Engine Model | 178FE | 186FAE | 188FAE | 192FE | R2V86 | R2V88 | ||||||
動力形式 Engine type | 單缸、直立、4沖程、風冷、柴油 Single cylinder,vertical,4 strokes, air-cooled diesel engine | 雙缸、直立、4沖程、風冷、柴油 Tow-cylinder,vertical,4 strokes, air-cooled diesel engine | |||||||||||
缸徑*行程 Bore*stroke(mm) | 78*62 | 86*72 | 86*72 | 92*75 | 86*72 | 86*72 | |||||||
燃料 Fuel type | 夏季用0號，冬季用10號 Summer:0#, Winter:-10# | ||||||||||||
潤滑油容量 Lubrication oil volumn(L) | 1.65 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | |||||||
燃油消耗率 (g/kw?h) Fuel Consumption rate | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||||
燃燒系統 Combustion system | 直噴 Direct injection | ||||||||||||
潤滑油類型Lube oil type | SAE10W-30 （CD級以上）(above CD grade) | ||||||||||||
標準配置 Standard accessory | 電壓表 voltmeter | 已配備 yes | |||||||||||
交流保護器 AC circuit breaker | 已配備 yes | ||||||||||||
油壓警告燈 Oil pressure warning light | 已配備 yes | ||||||||||||
機油報警器 Oil alert | 已配備 yes | ||||||||||||
交流插頭 AC output socket | 2 | ||||||||||||
選用配置 Accessory for optional | 直流保護器 DC circuit breaker | 可選optional | |||||||||||
計時器 Hour timer | 可選optional | ||||||||||||
輪子和把手 Wheel and handle | 可選optional | ||||||||||||
三相電壓 Three phase voltage | 可選optional | ||||||||||||
電流表 Current meter | 可選optional | ||||||||||||
自動轉換開關 ATS | 可選optional | ||||||||||||
遙控功能 Remote control | 可選optional | ||||||||||||
焊接功能 Welding function | 不可選 No | 可選optional | |||||||||||
外形尺寸 Product size(mm) | 950*550*770 | 950*560*760 | 950*560*760 | 980*560*790 | 1200*730*810 | 1200*730*810 | |||||||
裝箱量 Loading qty(set):1*20GP | 72 | 72 | 72 | 72 | 50 | 50 | |||||||
凈重Net weight(kg) | 146 | 165 | 168 | 175 | 275 | 285 | |||||||
